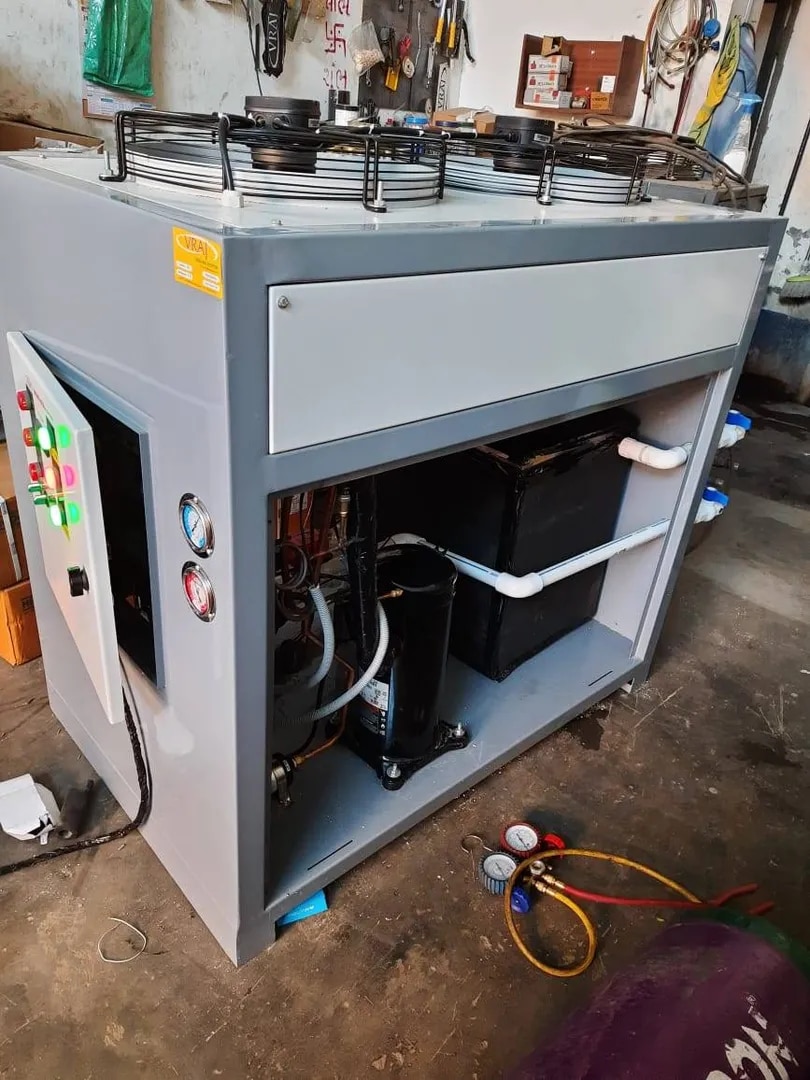

5 TR INDUSTRIAL WATER CHILLER

1 FLUID TO BE CHILLED- WATER (RO OR DM WATER IS PREFFERED)

2 CHILLER CAPACITY - 5 TR

3 AMBIENT TEMPERATURE- 20°C to 40°C

4 WATER INLET TEMPERATURE - 35 ˚C

5 REQUIRED WATER TEMPERATURE-15˚C OR 10˚C

6 REQUIRED FLOW RATE OF WATER (LPH)- 750 LPH

7 PROCESS TYPE - COOLING

8 COMPRESSOR - EMERSION/COPLAND MAKE ZR 72 ( 5.5 KW/50 HZ/400 volte )

9 COMPRESSOR TYPE- SCROLL

10 EVAPORATOR (CHILLER)- PLATE TYPE HEAT EXCHANGER OR SHELL & TUBE TYPE HEAT EXCHANGER

11 CONDENSER - ALLUMINUM FINS AND 100% COPPER TUBE TYPE CONDENSER

12 CONDENSING FAN - AXIL FAN/3 PHASE/440V/50HZ (450 MM 2 NOS)

13 CICULATION PUMP - 1 HP/3 PHASE KIRLOSKAR MAKE

14 CONTROL INSTRUMENT OF SYSTEM - LOW PRESSURE SWITCH, HIGH PRESSURE SWITCH, WATER FLOW TRIP

15 FILTER DRIER

16 THERMOSTATIK EXPANTION VALVE -EMERSON-SANHUA OR DANFOSS MAKE

17 ELECTRIC CONTROLL PENAL- SIEMENS MAKE 3 PH

18 O/L RELLAY FOR COMPRESSOR & PUMP

19 TEMPERATURE CONTROLLER -SUBZERO MAKE

20 REFRIGERANT R 22

21 ELECTRIC LOAD 8 KW ± 10% 8 KW ± 10%

22 BODY MS POWDER COATED BODY WITH S.S 304 GARDE 100 LTR TANK

23 TANK 120 TO 13 LITER
